OM26630FDKM

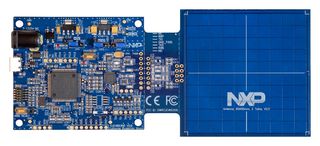

OM26630FDK is a flexible and easy to use frontend development kit for CLRC663 plus. It contains a CLEV6630B board fully supported by the NFC Cockpit and the NFC Reader Library with a 65mm² x 65mm² antenna optimized for EMVCo applications and a 30mm² x 50mm² antenna with matching components optimized for access management applications. It also includes 3 small antennas matching PCBs for implementation of custom antenna matching circuit, NFC sample cards based on NTAG216 (NFC Forum type 2 tag) and MIFARE DESFire® EV2, and 10 x CLRC663 plus samples in HVQFN package.

• Highest RF performance
• Low power card detection
• Compliance with all standards relevant to contactless NFC reader operation and EMVCo 2.6
• Artificial damping of the RF field in the middle of the antenna simulating the presence of a PCB or display to demonstrate the expected performance
• LPC1769 MCU on board, SPI interface accessible for connection of other MCU
