85 Voit varata tuotteen varastosta nyt
Määrä | |
---|---|
1+ | 60,990 € |
10+ | 53,600 € |
25+ | 50,920 € |
50+ | 48,980 € |
100+ | 47,110 € |
Tuotetiedot
Tuotteen yleiskatsaus

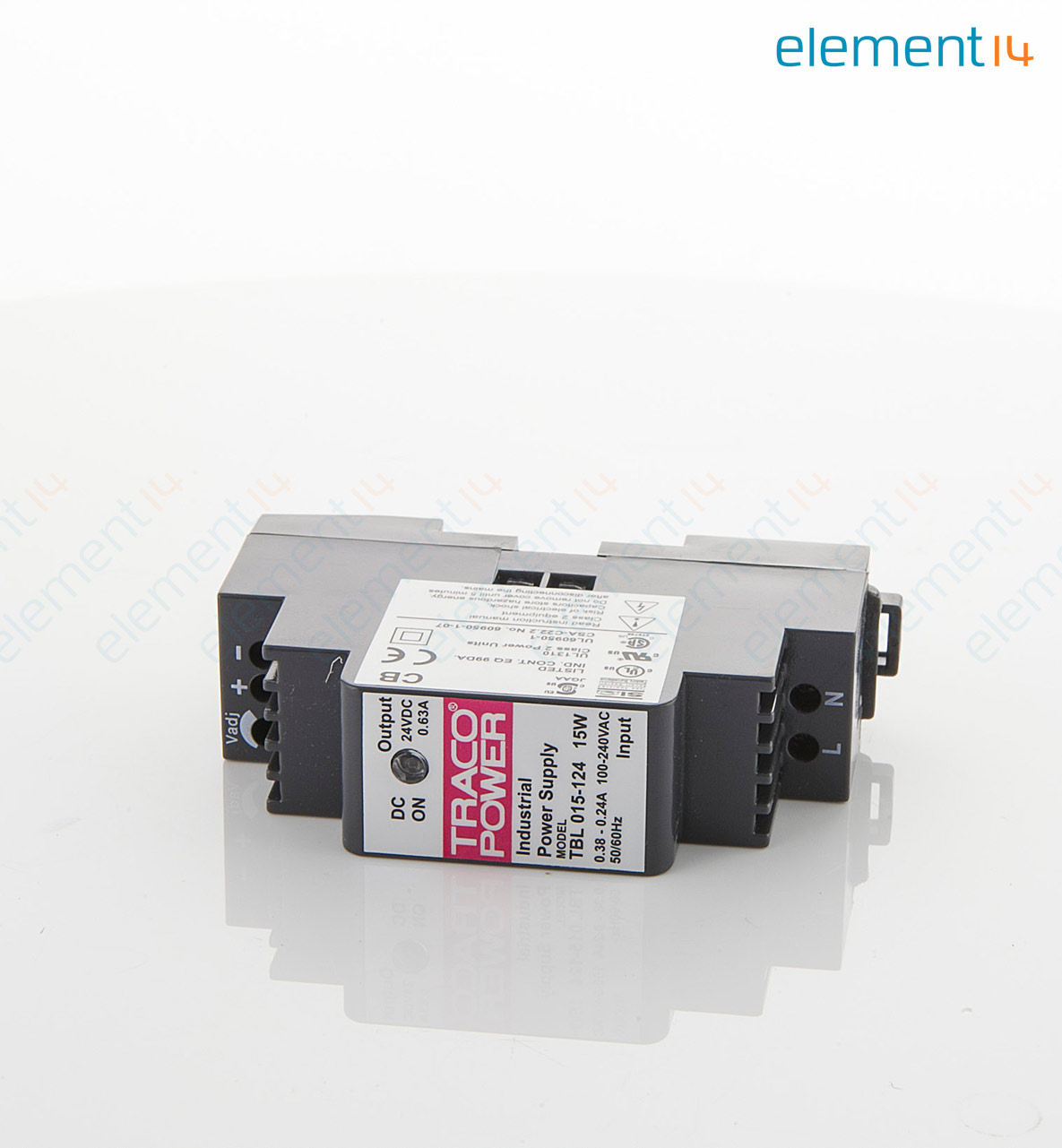

The TBL 015-124 is a TBL-series 15W 24VDC 0.63A industrial Power Supply with low profile case, module depth only 55mm fits into flat control panels used in building. The ultra-compact low profile cases fit in the standardized wall mounted control panels used in the building. The power supplies can be operated at full load across an ambient temperature range of -25 to 60°C without need of additional cooling. Universal input voltage range and full compliance with all important safety and EMC standards.
- Class-II Safety
- Universal input range 85 to 264VAC
- Adjustable output voltage
- Short-circuit and overload protection
- DC-OK indicator
- Easy snap-on mounting on DIN-rail or with wall mounting bracket
- -25 to 70°C Operating temperature range
Sovellukset
Industrial, Power Management, Building Automation, Commercial
Tekniset tiedot
ITE
15W
630mA
-
-
-
264VAC
Adjustable, Fixed
No SVHC (14-Jun-2023)
1 Output
24VDC
-
-
-
85VAC
85V AC to 264V AC
TBL Series
Tekniset asiakirjat (3)
Vaihtoehdot osanumerolle TBL 015-124.
1 tuote löytyi
Liitännäistuotteet
1 tuote löytyi
Lainsäädäntö ja ympäristöasiat
Maa, jossa viimeinen merkittävä valmistusvaihe on tehtyAlkuperämaa:China
Maa, jossa viimeinen merkittävä valmistusvaihe on tehty
RoHS
RoHS
Tuotteen vaatimustenmukaisuustodistus
