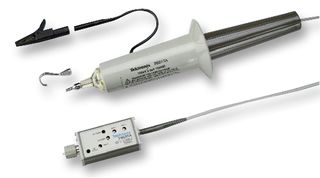

P6015A+OPTION 1R

1000X high voltage single ended probe for ground-referenced voltage testing. It is critical to safely and accurately capture real-time signal information from 'elevated' or 'floating' voltage systems. Typically used at power supply design, design motor drive, electronic ballast, power semiconductors, switch mode control, UPS systems and power converters.

• Comes with option 1R - 3-meter length with readout
• Front panel save and recall buttons
• High voltage - 20KV DC / 40KV peak (100ms pulse width)

Sovellukset

Test & Measurement

Sisältö

Voltage probe + option 1R, Hook probe tip (206-0463-xx), Banana plug tip (134-0016-xx), Crocodile clip (plugs onto ground lead (344-0461-xx), Ground lead (196-3363-xx), Carrying case (016-1147-xx), Instruction manual (070-8223-xx), Probe tip (206-0116-xx).
