DD11.0114.1110
Un-Filtered IEC Power Entry Module, 1P Fuseholder, 2P Lighted Switch, IEC C14, Medical, 8 A
Tarvitsetko enemmän?
| Määrä | |
|---|---|
| 1+ | 11,300 € |
| 10+ | 10,490 € |
| 25+ | 9,670 € |
| 100+ | 9,480 € |
| 250+ | 9,280 € |
| 500+ | 9,090 € |
Tuotetiedot
Tuotteen yleiskatsaus

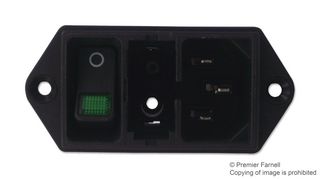

The DD11.0114.1110 is a green GST IEC C14 Power Entry Module without filter. It has a 1-pole fuseholder, a 2-pole illuminated line switch and 4.8x0.8mm quick connect terminals. It is suitable for appliances with protection class I according to IEC 61140. Fuse drawer meets requirements of medical standard IEC/EN 60601-1. It is ideal for application with high transient loads. It is suitable for use in equipment according to IEC/UL 60950.
- Ultra-compact design
- Ideal for low profile designs
- All single elements are already wired
- IP40 Protection rating
- Fusedrawer sold separately
Varoitukset
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Huomautuksia
Please note that this item is sold without the back cover; for other options, please check datasheet and series.
Tekniset tiedot
IEC C14
8A
2-Pole Switch
Quick Connect
Quick Connect
IP40
No SVHC (21-Jan-2025)
Medical
250VAC
1-Pole Fuse Holder
5mm x 20mm
Flange Mount
DD11
Tekniset asiakirjat (4)
Liitännäistuotteet
8 tuotetta löydetty
Lainsäädäntö ja ympäristöasiat
Maa, jossa viimeinen merkittävä valmistusvaihe on tehtyAlkuperämaa:Czech Republic
Maa, jossa viimeinen merkittävä valmistusvaihe on tehty
RoHS
RoHS
Tuotteen vaatimustenmukaisuustodistus
