RTK7FPA2E2S00001BE

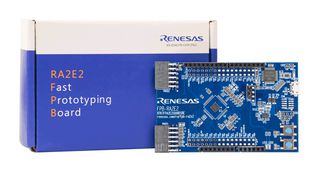

RTK7FPA2E2S00001BE is a RA2E2 fast prototyping board (FPB-RA2E2). RA2E2 Fast Prototyping Board is an evaluation board specialized for prototype development for a variety of applications. It has a built-in emulator circuit equivalent to an E2 Emulator OB, so you can write/debug program without additional Tools. In addition, with Arduino Uno™ and Pmod™ interfaces included standard and through-hole access to all pins of the microcontroller, and so on. It has high expandability.

• Equipped with an RA2E2 32bit MCU 24pin, 64KB ROM, 8KB RAM
• No additional tools required for program debugging/writing with built-in E2 Emulator circuit
• Through-holes with access to all of the pins of the MCU
• Arduino Uno™ and Pmod™ Interfaces
• Small size board of 53mm x 85mm size
• Support for various RA2E2 software and tools
• Power-supply voltage VCC is 3.3V to 5.5V, MCU operation voltage range from 1.6V to 5.5V
• Power indicator: green x 1, user: green x 2, on-board debugger ACT LED: green x 1
• Angle type, 12-pin x 2 Pmod™ connector
• Micro USB Type-B connector

Sisältö

FPB-RA2E2 fast prototyping board (RTK7FPA2E2S00001BE), Quick start guide.
