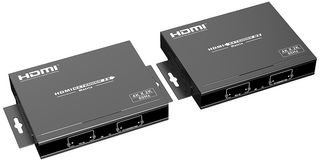

PSG3447

Easily extend an 4K Ultra HD HDMI signal over a single Cat5e/6 network cable. The PSG3447 utilises a versatile matrix design that supports 1-to-1 and 1-to-many configurations using a standard IGMP switch.

• Matrix design supports 1-to-1 and 1-to-many configuration
• Supports video resolutions up to 4Kx2K UHD @60Hz
• Maximum cable run 120m (Cat6) or 100m (Cat5e)
• HDbitT technology for stable performance
• Smart control app for PC and mobile devices
• IR Passback support (20-60kHz frequency) to control source devices
• Compliant with HDMI 2.0 and HDCP 2.2 specification
• Channel ID display and power/activity status LED indicators
• Easy access reset button (TX & RX)
• Transmitter connections: HDMI in, RJ45 out, IR out
• Receiver connections: RJ45 in, HDMI out, IR in
• Dimensions (HxWxD): 25x103x98mm (each)

Sisältö

Transmitter, receiver, remote, 2x AC adaptor, 2x IR cables, mounting brackets and user guide
