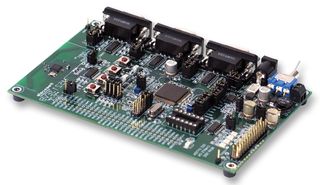

M52210DEMO

The M52210DEMO is a low cost development board for the NXP MCF52210 ColdFire microcontroller. Application development is quick and easy with the included DB9 serial cable, integrated BDM, and USB cable. A 128MB flash drive and 6 in 1 USB cable provide support for the integrated USB PHY. CodeWarrior development tools provide application development and debug support. The integrated BDM allows easy application development and debugging. An optional BDM port compatible with standard ColdFire BDM/JTAG interface cables and hosting software is also provided but not installed.

• Power Input from USB BDM, miniUSB, on board regulator, terminal block and connector J1
• 3 axis accelerometer, 4 user LED's with enable, 2 user push switches, 5k ohm POT with enable
• RJ45 Ethernet connector
• RS232 serial port with DB9-S connector
• Type B USB connector
• 2position, screw type, terminal block

Sovellukset

Industrial, Security

Sisältö

DB9 Serial Cable, USB cable, Ethernet Cable, Support CD, and CodeWarrior Development Studio CD.

Varoitukset

ESD prevention measures should be used when handling this product. ESD damage is not a warranty repair item.
