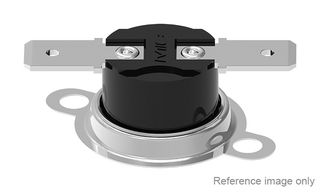

MP-11-140/120/E121B14H221

MP-11-140/120/E121B14H221 is a snap-action thermostat switch used to regulate the temperature of a system or environment by sensing temperature changes of 140°C and activating or deactivating heating or cooling systems accordingly. It is normally closed and operates in the range of 125V to 250V at 16A. Thermostat switches are commonly used in heating, ventilation, air conditioning (HVAC) systems, appliances, and various industrial and commercial applications to maintain desired temperature levels.

• N/C automatic reset thermostat
• AgNi/Cu (T2) stationary contact, brass stationary arm, AgNi/Cu (T2) movable contact
• PF case, alloy copper movable arm, PF top cover, bimetal disc
• Aluminium cap, ceramic actuator pin, SUS430 flange
• Resistance between terminals is below 50Mohm at DC5V/0.25A
• Insulated resistance is above 100Mohm with DC500V between terminals and cap
• GB14536. 1-2008, GB14536. 10-2008, GB/T22687-2008, UL60730, EN60730-1, EN60730-2-9 standards
• Set temperature is 140°C ±4°C
• Reset temperature is 120°C ±6°C

Sovellukset

Temperature Controllers, Industrial, Automation & Process Control, HVAC

Sisältö

x1 Thermostat switch.

Huomautuksia

Secure flange mounting to surfaces.
