19034-0005

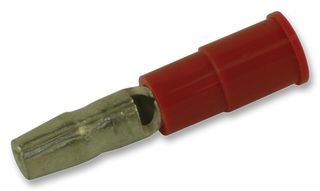

The 19034-0005 is an InsulKrimp™ male snap plug terminal made of copper with tin plated finish for 22 to 18AWG wire. This 19034 series partial insulated plug terminal comes with PVC insulation and closed barrel. Molex snap plug terminal is used in a variety of applications where a "quick disconnect" connection is desired. It is ideal for applications with space limitations, the round bullet like plug "snaps" into the female receptacle. Similar to other quick disconnects, the male and female terminals can be connected and disconnected multiple times.

• 22.61mm length
• Intermateable with other industry standard plugs and receptacles
• Designed for multi-connections and disconnections
• Provides design engineers a choice of size and current rating
• UL94V-0 flammability rating
• Maximum voltage is 600V

Sovellukset

Commercial Vehicle, Consumer Electronics
