AC243009

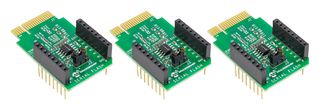

AC243009 is a SQI SUPERFLASH® KIT 1 contains three Serial Flash Daughter Boards. The Serial Flash Daughter Board is an evaluation board designed to interface with the mikroBUS™ connector on the Explorer 16/32 Development board (DM240001-2). It can also interface with the PICtail™ Plus connector that is located on the Explorer 16 Development board (DM240001).

• 3-pin header provides easy access for the external power supply and power measurement capability
• Plugs into the mikroBUS connector of the Explorer 16/32 development board
• Plugs into the PICtail Plus connector of the Explorer 16 development board
• Follows published recommended usage, including decoupling capacitors

Sovellukset

Embedded Design & Development

Sisältö

3 Serial Flash daughter boards and each board has a SQI Flash device soldered on it. (Serial Flash board 02-10609-4 has SST26VF064B soldered on it with jumper setting for J3 between Pin 2 and Pin 3), (Serial Flash board number 02-10609-5 has SST26VF032B soldered on it with jumper setting for J3 between Pin 2 and Pin 3), (Serial Flash board number 02-10609-6 has SST26WF016B soldered on it with jumper setting for J3 between Pin 1 and Pin 2).
