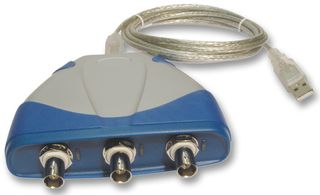

DS1M12

• Oscilloscope, data logger, spectrum analyser, voltmeter, frequency meter, waveform generator in one
• A/D resolution 12 bit
• 2 channels with BNC for x1/x10 standard probes (available as an optional accessory)
• Third BNC as trigger output or waveform generator output
• Simultaneous sampling on both channels
• 32 kB waveform buffer
• 20 MS/s sample rate (repetitive), 1 MS/s native
• Max. input voltage }50 V
• AC/DC coupling
• Trigger modes: Edge, min./max. pulse width and delay trigger
• Inbuilt 10 bit waveform generator with 3.5 V output range and 1 k buffer
• Power via USB (250 mA)
• Size only ~116 mm (W) x 30 mm (H) x 100 mm (D), 160 g (without cable)

Sovellukset

Maintenance & Repair, Test & Measurement

Sisältö

Windows drivers and software Easy-Scope II and EasyLogger. USB cable and bag.

Huomautuksia

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
