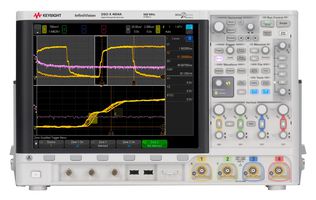

DSOX4054A

DSOX4054A is a 4000 X-series analogue channel oscilloscope. It boasts 12.1inch display, capacitive touch screen technology, InfiniiScan zone touch triggering, 1-million-waveforms/sec update rate, MegaZoom IV smart memory technology and standard segmented memory. It expands user measurement capabilities with full upgradability: Add bandwidth, digital channels, dual-ch 20MHz arbitrary WaveGen, 3-digit DVM, serial trigger and analysis and mask testing.

• 4 analogue channels, easily view signals on the large 12.1inch capacitive touch screen
• Isolate signals in seconds with exclusive zone touch triggering
• 500MHz bandwidth, 5GSPS sampling rate, 700ps calculated rise time
• 1GHz bandwidth (-3dB), ≤ 450ps calculated rise time (10 to 90%)
• 500MHz system bandwidth with N2894A standard passive probe
• 1ns/div to 50s/div time base range, ±10ppm time base accuracy
• 2ns minimum detectable pulse width, 2ns typical channel-to-channel skew
• 1.25GSa/s maximum digital channels sample rate
• Capture more data with 4Mpts memory and standard segmented memory
• Dimension (W x H x D) is 454mm x 275mm x 156mm

Sisältö

Analog channel oscilloscope, 3-year warranty (90 days for unserialized accessories such as passive probes), Certificate of Calibration, 2-year calibration interval, one N2894A 700MHz passive probe (10:1 attenuation) per channel, Localized interface, Front panel overlay and built-in help system, Localized power cord, Front panel cover, Documentation CD containing localized user’s guide, service guide, and programmer’s manual.
