DSOX1204G

DSOX1204G is an InfiniiVision 1000 X-series 4-channel, 70MHz digital signal oscilloscope with 20MHz function generator. The 1000 X-Series is a family of low-cost oscilloscopes that don’t compromise on quality. The 1000 X-Series offers an integrated 20MHz function generator with modulation capability. It’s ideal for educational or design labs where bench space and budget are at a premium. The integrated function generator provides stimulus output of sine, square, ramp, pulse, DC and noise waveforms to your device under test. Add modulation to the signal with customizable AM, FM and FSK settings. Built-in help language support for English, Simplified Chinese, Traditional Chinese, Japanese, Korean, German, French, Spanish, Russian, Portuguese, Thai, Polish, and Italian. Interface language support GUI: English, Simplified Chinese, Traditional Chinese, Japanese, Korean, German, French, Spanish, Russian, Portuguese, Thai, Polish, Italian, Czech, and Turkish.

• 7inch TFT LCD WVGA display

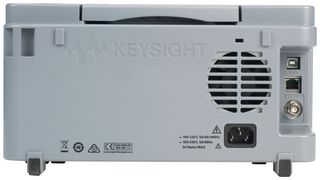

• External trigger : back panel input (not displayed)
• 200,000 waveforms per second waveform update rate
• I²C, SPI, UART/RS-232, CAN, LIN standard serial protocol analysis
• Features segmented memory, mask/limit testing
• Features built-in training signals, integrated digital voltmeter
• Features frequency counter
• Add, subtract, multiply, divide, FFT (magnitude and phase), low pass filter waveform math
• Automatic measurements as 14 amplitude, 14 timing and 4 pulse count measurements
• USB 2.0 (host and device), LAN connectivity

Sisältö

DSO, Standard 3-year warranty (90 days for unserialized accessories), 5-year calibration period with certificate provided, Standard secure erase, Four N2140A standard passive probes, Built-in help in multiple languages, Interface language support GUI (English, Simplified Chinese, Traditional Chinese, Japanese, Korean, German, French, Spanish, Russian, Portuguese, Thai, Polish, Italian, Czech, and Turkish), Localized power cord.

Huomautuksia

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
