99 0972 100 02

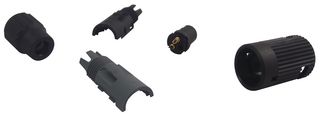

The 99 0972 100 02 is a 2-contact 125V/4A unshielded straight subminiature female Circular Connector with gold-plated bronze contacts, PA (UL94V-0) contact body and PA (UL 94HB) housing. The 678 series receptacle with Bayonet locking system, solder termination, cable mounting style. It accepts 24AWG (0.25mm²) wire, 3 to 4mm cable outlet. The reliable and secure bayonet locking system is easy to operate and can withstand high vibrations. Housing outer diameter is only 12mm. It has a strain relief for added strength.

• 1500V Rated impulse voltage
• ≤3mΩ Volume resistivity
• <gt/>500 mating cycles Mechanical operation
• IP40 Protection rating

Sovellukset

Portable Devices, Consumer Electronics, Medical, Industrial
