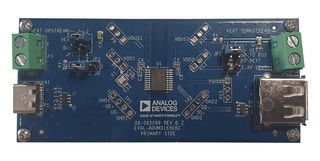

EVAL-ADUM3165EBZ

EVAL-ADUM3165EBZ is an evaluation board that allows quick and easy evaluation of the ADuM3165 USB isolators, allowing direct connection to USB hosts and peripherals without the need for additional components. The ADuM3165 employ Analog Devices, Inc., iCoupler® technology to combine isolator channels, USB transceivers, power and timing circuits, control logic and internal terminations, pull-ups, and pull-downs into a single, 20-lead, compact shrink small outline package (SSOP).

• Supports USB 2.0 data transfer ( Low/Full /High speed (1.5Mbps/12Mbps/480Mbps)
• Upstream 5V power from cable or external supply
• Accepts 3.3V or 5V external supplies
• PGOOD (power good) indicator on downstream side
• Option to connect test points
• 20-lead SSOP package option with 5.3mm creepage
