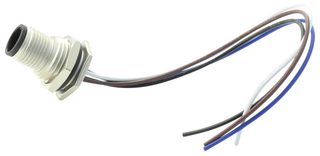

M12A-04PFFC-SF8B15
Sensor Cable, M12 Receptacle, Free End, 4 Positions, 150 mm, 5.9 ", M Series
Ilmoittakaa minulle, kun tuotetta on taas varastossa
| Määrä | |
|---|---|
| 1+ | 5,400 € |
Tuotetiedot
Tuotteen yleiskatsaus
The M12A-04PFFC-SF8B15 from Amphenol LTW is M series sensor connector. This M12 A-coded (metal nut) size connector for panel mount meets the most demanding needs in factory automation applications. M-series is perfectly suitable for industrial equipment, machinery and automation that offer safety in harsh environmental conditions including corrosion, shock vibration, dust, moisture build-up and extremely adverse installation situations.
- Number of contacts is 4
- Connector body (style) is panel for receptacle
- Female connector housing
- Female contact gender
- Crimp assemble type and screw thread mating
- Hexagonal, front fastened backshell
- IP68 waterproof rating
- UL1061 cable with 150mm wire length
- Operating voltage is 250V
- Mating cycle is 100 minimum, operating temperature range from -40°C to 105°C
Sovellukset
Sensing & Instrumentation, Automation & Process Control, Industrial
Tekniset tiedot
M12 Receptacle
M12 Sensor Straight 4 Position Receptacle
Free End
150mm
M Series
M12 Straight Receptacle to Free End
Free End
4 Positions
5.9"
No SVHC (17-Jan-2023)
Tekniset asiakirjat (3)
Lainsäädäntö ja ympäristöasiat
Maa, jossa viimeinen merkittävä valmistusvaihe on tehtyAlkuperämaa:China
Maa, jossa viimeinen merkittävä valmistusvaihe on tehty
RoHS
RoHS
Tuotteen vaatimustenmukaisuustodistus
