1.5KE440CA

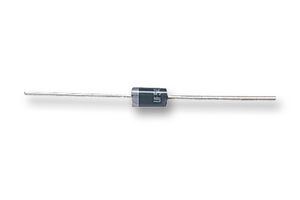

The 1.5KE440CA is an axial leaded Transient Voltage Suppressor (TVS) Diode with lead-free matte tin-plated terminal. The transient voltage suppressor (TVS) diode is a protection diode designed to protect electronic circuits against transients and overvoltage threats such as EFT (electrically fast transients) and ESD (electro-static discharge). The TVS diode is silicon avalanche devices typically chosen for their fast response time (low clamping voltage), lower capacitance and low leakage current. The TVS diode is available in bidirectional (bi-polar) diode circuit configuration. The 1.5KE series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

• Glass passivated chip junction
• Excellent clamping capability
• Typical failure mode is short from over-specified voltage or current
• Low incremental surge resistance
• 1mA Test current
• 2.5A Maximum peak pulse current

Sovellukset

Communications & Networking, Computers & Computer Peripherals, Industrial, Consumer Electronics
