ENW89854A3KF
Bluetooth Module, BLE 5.1, 1 Mbps, -95 dBm, 1.7 V to 5.5 V, PAN1780 Series

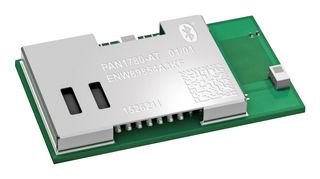

Image is for illustrative purposes only. Please refer to product description.
ManufacturerPANASONIC
Manufacturer Part NoENW89854A3KF
Order Code3868966
Product RangePAN1780 Series
Technical Datasheet
1,367 In Stock
Need more?
1-3 Working Days Delivery
Order before 17:00 standard shipping
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | € 16.790 |
| 5+ | € 15.610 |
| 10+ | € 14.430 |
| 50+ | € 12.700 |
| 100+ | € 11.950 |
| 250+ | € 11.200 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
€ 16.79 (ex VAT)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerPANASONIC
Manufacturer Part NoENW89854A3KF
Order Code3868966
Product RangePAN1780 Series
Technical Datasheet
Bluetooth VersionBluetooth 5.1
Supply Voltage Min1.7V
Supply Voltage Max5.5V
Signal Range Max-
Data Rate2Mbps
Bluetooth Class-
Receive Sensitivity-103dBm
Operating Temperature Min-40°C
Operating Temperature Max85°C
Product RangePAN1780 Series
SVHCTo Be Advised
Product Overview
Bluetooth low energy single mode with antenna and BlueRadios nBlue Bluetooth AT.s LE command set. The PAN1780‑AT is a Bluetooth 5 Low Energy (LE) module based on the Nordic nRF52840 single-chip controller with integrated BlueRadios nBlue™ Bluetooth AT.s LE command set.
- Surface mount type dimensions: 15.6mm x 8.7mm x 2mm
- Same footprint as PAN1780
- Nordic nRF52840 featuring ARM® Cortex®-M4F with 64MHz
- Bluetooth 5 LE including LE 2M and LE Coded PHY
- Embedded 1MB flash memory and 256kB internal RAM
- Up to 46 GPIO which are shared with 1 UART, 8 ADC’s, 1 NFC-A and nRESET input
- USB 2.0 full-speed device interface
- Built in temperature sensor
Technical Specifications
Bluetooth Version
Bluetooth 5.1
Supply Voltage Max
5.5V
Data Rate
2Mbps
Receive Sensitivity
-103dBm
Operating Temperature Max
85°C
SVHC
To Be Advised
Supply Voltage Min
1.7V
Signal Range Max
-
Bluetooth Class
-
Operating Temperature Min
-40°C
Product Range
PAN1780 Series
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Slovak Republic
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Slovak Republic
Country in which last significant manufacturing process was carried out
Tariff No:85176990
US ECCN:5A992.c
EU ECCN:NLR
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.174
Product traceability
