MCOB11605BV-EWP

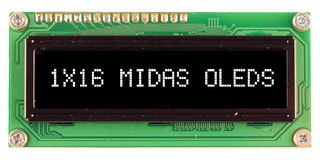

Alphanumeric OLED, 16 x 1, White on Black, 5V, Parallel, Multi, 5.55 mm
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMIDAS DISPLAYS
Manufacturer Part NoMCOB11605BV-EWP
Order Code3773195
Product RangeMCOB11605B
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 16 week(s)
Notify me when back in stock
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | € 25.970 |
| 5+ | € 23.890 |
| 10+ | € 21.330 |
| 50+ | € 19.910 |
| 100+ | € 19.510 |
Price for:Each
Minimum: 1
Multiple: 1
€ 25.97 (ex VAT)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMIDAS DISPLAYS
Manufacturer Part NoMCOB11605BV-EWP
Order Code3773195
Product RangeMCOB11605B
Technical Datasheet
Character Count x Line16 x 1
Display AppearanceWhite on Black
Logic Voltage5V
Interface TypeParallel
Font SetMulti
Character Size5.55mm
Module Size80mm x 36mm
Operating Temperature Min-40°C
Operating Temperature Max80°C
Display ConstructionCOB
Product RangeMCOB11605B
SVHCNo SVHC (27-Jun-2024)
Product Overview
- Character count: 1x16
- Appearance: White on black
- Construction: COB
- Module size: 80x36x10mm
- Character height: 5.55mm
- View area: 66x16mm
- Dot size: 0.55x0.65mm
- Dot pitch: 0.60x0.70mm
- Character size: 2.95mm x 2.95mm
- Character pitch: 3.6mm x 5.55mm
- Duty: 1/8
- Emitting colour: OLED, white
- Interface: 6800
- IC: MS0010
Technical Specifications
Character Count x Line
16 x 1
Logic Voltage
5V
Font Set
Multi
Module Size
80mm x 36mm
Operating Temperature Max
80°C
Product Range
MCOB11605B
Display Appearance
White on Black
Interface Type
Parallel
Character Size
5.55mm
Operating Temperature Min
-40°C
Display Construction
COB
SVHC
No SVHC (27-Jun-2024)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85312020
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.04
