MTA9ASF2G72HZ-3G2F1
RAM Memory Module, 16 GB, PC4-3200, DDR4 SDRAM, Notebook SODIMM, 2G x 72bit

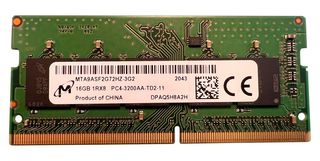

Image is for illustrative purposes only. Please refer to product description.
3 In Stock
Need more?
FREE Standard Delivery
on orders € 0.00 and over
.
.
Accurate delivery times will be calculated in Checkout
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | € 434.700 |
| 5+ | € 426.010 |
Price for:Each
Minimum: 1
Multiple: 1
€ 434.70 (ex VAT)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMICRON
Manufacturer Part NoMTA9ASF2G72HZ-3G2F1
Order Code4050919
Technical Datasheet
Memory Density16GB
Memory Speed-
Module MemoryPC4-3200
Module Form FactorDDR4 SDRAM
Memory ApplicationNotebook SODIMM
Memory Configuration2G x 72bit
Supply Voltage Min-
Supply Voltage Max-
Supply Voltage Nom-
Operating Temperature Min0°C
Operating Temperature Max95°C
Product Range-
SVHCNo SVHC (17-Dec-2015)
Product Overview
MTA9ASF2G72HZ-3G2F1 is a DDR4 SDRAM SODIMM.
- Fast data transfer rate: PC4-3200, 0°C ≤ TOPER ≤ 95°C commercial operating temperature
- VDD = 1.20V (NOM), VPP = 2.5V (NOM), VDDSPD = 2.5V (NOM)
- Supports ECC error detection and correction, gold edge contacts
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Low-power auto self refresh (LPASR), data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration, single-rank
- On-board I2C temperature sensor with integrated serial presence-detect (SPD) EEPROM
- 16 internal banks; 4 groups of 4 banks each, selectable BC4 or BL8 on-the-fly (OTF)
- 260-pin, small-outline dual in-line memory module (SODIMM)
- 0.625ns at CL = 22 (DDR4-3200) frequency/CAS latency
Technical Specifications
Memory Density
16GB
Module Memory
PC4-3200
Memory Application
Notebook SODIMM
Supply Voltage Min
-
Supply Voltage Nom
-
Operating Temperature Max
95°C
SVHC
No SVHC (17-Dec-2015)
Memory Speed
-
Module Form Factor
DDR4 SDRAM
Memory Configuration
2G x 72bit
Supply Voltage Max
-
Operating Temperature Min
0°C
Product Range
-
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:84733020
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Dec-2015)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000001
