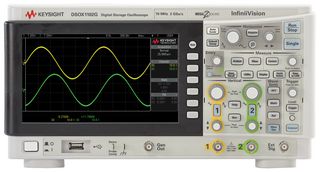

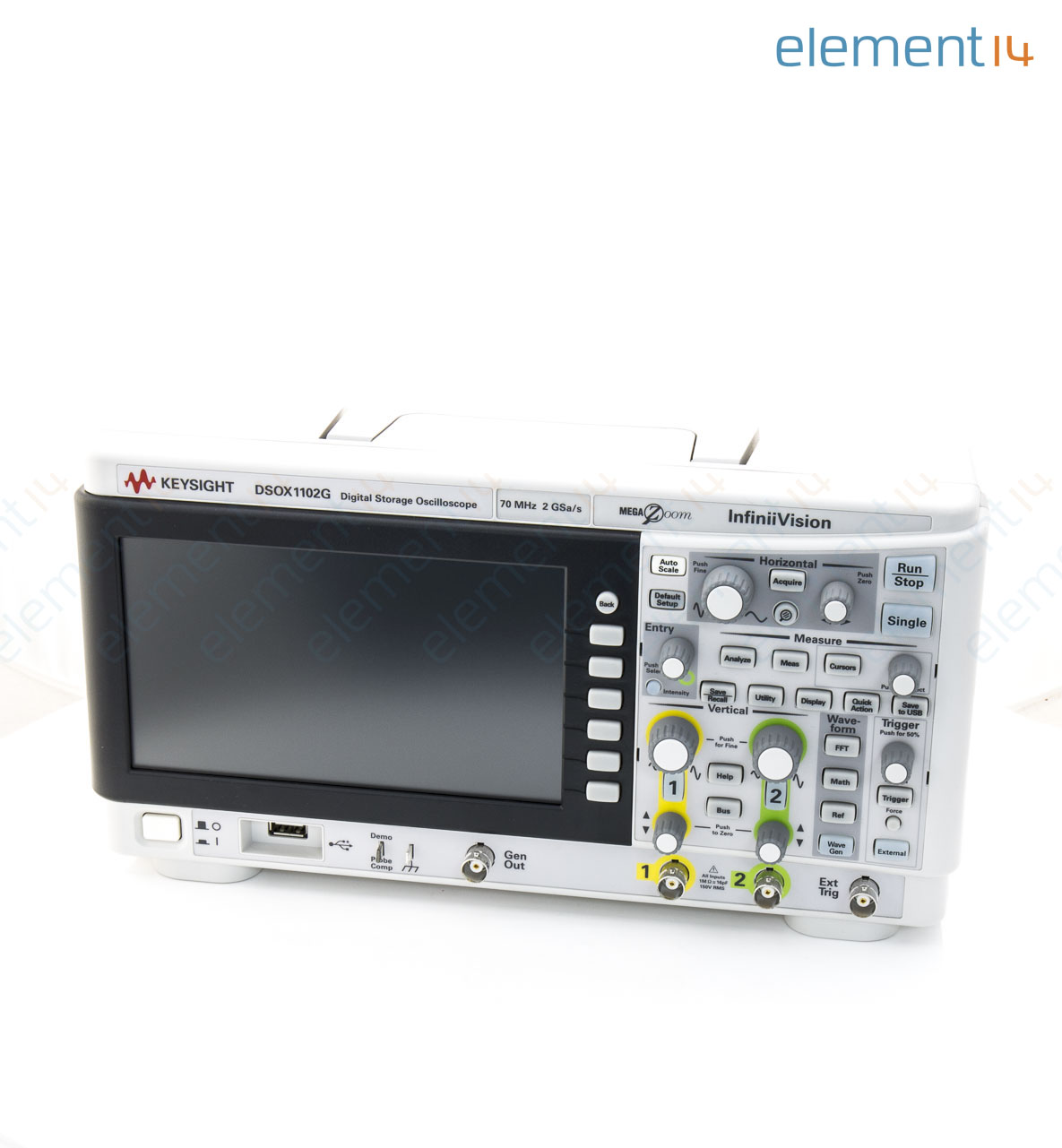

KEYSIGHT TECHNOLOGIES DSOX1102G
Digital Oscilloscope, InfiniiVision 1000 X, 2+1 Channel, 70 MHz, 2 GSPS, 1 Mpts, 5 ns
Image is for illustrative purposes only. Please refer to product description.
Product Range Selector (InfiniiVision 1000 X)See all from this product range
Alternatives for DSOX1102G
Want to see similar products? Simply select your required attributes below and hit the button ×
- InfiniiVision 1000 X
- 2+1 Channel
- 1 Mpts
- WVGA LCD Colour
- Digital Storage Oscilloscope, 2 Probes, Power Cord, Warranty, Secure Erase, Interface GUI Menus
- 3 Years
Technical Documents (4)
- 2 analogue channels and 1 digital channel
- Maximum sample rate is 2GSa/s
- Maximum memory depth is 1Mpts
- 7inch TFT LCD WVGA display
- Calculated rise time (10 to 90%) is <= 5ns
- Built-in USB host and USB device ports make PC connectivity easy
- Access 24 built-in automatic measurements
- Segmented memory and mask/limit testing
- Dimension is 314mm (12.4 in) x 165mm (6.5 in) x 130mm (5.1 in)
- UL61010-1 3rd edition, CAN/CSA-C22.2 no. 61010-1-12 safety standard
- DVM (digital voltmeter DSOXDVM) upgrade available free for 1000 X-Series, product registration required to download via www.keysight.com/find/1000X-Series-DVM
- The Educator's Oscilloscope Training Kit (DSOXEDK) upgrade is also free and integrated with all InfiniiVision X-Series. Visit www.keysight.com/find/scopes-edu
Test & Measurement, Medical
A BenchVue software license (BV0004B) is now included with your instrument. BenchVue makes it simple to connect, control instruments, and automate test sequences. DSOX1102G oscilloscope, Secure erase, Built-in help language support, Interface language support GUI menus, Power cord.
No Longer Manufactured
Pricing is unavailable. Please contact customer services.
