DK-DEV-2AGX260N

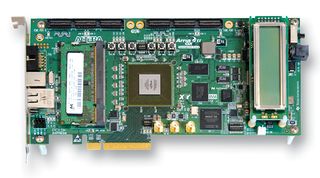

DK-DEV-2AGX260N is a Altera Arria II GX FPGA Development Kit, 6G Edition delivers a complete system-level design environment with the hardware and software needed to develop6G FPGA designs. With this PCI-SIG-compliant board and a one-year license for Quartus II design software, User has an option to develop and test FPGA designs with transceivers supporting up to 6.375-Gbps data rates, Develop and test memory subsystems consisting of DDR2 and DDR3 memory, Develop and test designs based on other Arria II GX FPGA-supported protocol interfaces such as PCI Express (PCIe) 1.0, Gbps Ethernet (GbE), SDI, CPRI, OBSAI, SAS/SATA and Serial RapidIO. Many of these are supported by taking advantage of this board's modular capability through the high-speed mezzanine card (HSMC) connectors.

• Arria II GX EP2AGX260 FPGA in the 1,152 pin fine-pitch ball-grid array (BGA) package
• MAX II EPM2210F256 CPLD in the 256 pin fine-pitch BGA package
• On-Board ports: Two HSMC expansion port, One GbE port
• On-Board memory: 128MB 16bit DDR3 device, 1GB 64bit DDR2 SODIM, 2MB SSRAM, 64MB flash
• MAX II CPLD and flash fast passive parallel configuration, On-Board USB-Blaster circuitry
• Quartus II software, includes support for Arria II GX FPGAs Includes one-year license
• Nios II Embedded Design Suite
• MegaCore IP Library, PCI, triple speed Ethernet, SDI & DDR3 high performance controller IP cores
• Arria II GX FPGA Development Kit CD-ROM includes Design examples, complete documentation
• Clocking circuitry includes 4 On-Board oscillators, SMA connectors for external LVPECL clock input

Applications

Multimedia, Imaging, Video & Vision, Communications & Networking, Wireless, Aerospace, Defence, Military, Embedded Design & Development

Contents

Arria II GX FPGA development board, Power supply and cables, Quartus II Subscription Edition Software, Arria II GX FPGA Development Kit Installer, CD and Documentation
