28500

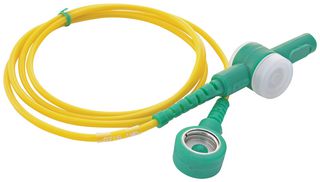

The 28500 is a 4.5m common point Ground Wire with polyurethane insulation and Ø2.5mm 7 tinsel wires conductor. The body housing shall have a combination of 10mm male snap, 10mm female snap and banana receptacle with 1MΩ resistor joined in series while the other end is 10mm female snap. The ground ends of the cord shall have a nylon single material moulding for both moulded body and strain relief. The cord conductor shall have an end to end resistance of not greater than 50Ω. The tensile strength of the end connections shall be not less than 66% of the tensile strength of the wire and in no case shall it be less than 5lbs.

• Moulded ends and chips in PMS340 green colour
• Exceeds 20000 cycles of bending life test without any physical damage on the strain relief
• 1 to 5lbs Pull away force is required to disconnect the snap in a normal disconnect direction

Sovellukset

Safety
